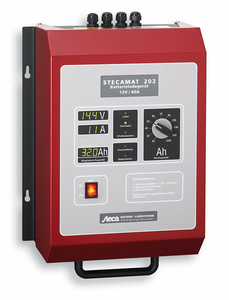

Stecamat 202

Processor-controlled charger for lead batteries

Description

The Stecamat 202 battery charger is available in 12 V and 24 V with a rated power of 570 W to 860 W, also with automatic switching. Your battery is charged gently and quickly by the processor-controlled charging process. By setting the nominal capacity, the current, voltage, time and ideal monitoring of your battery can be individually adjusted. This also allows pre-damaged or deeply discharged batteries to be treated, making a long service life possible with the Stecamat 202. Clear, large and illuminated displays give you quick information about the charging status. The extensive equipment and the solutions tailored to your application ensure maximum flexibility in use. This equipment and the easy operation, even with gloves, ensure seamless operation.

Features

Product features

  • Half the charging time compared to simple, non-controlled chargers with the same rated current
  • Optimal for charging batteries with liquid electrolyte and gel / absorbed electrolyte (AGM)
  • Adjustable rated capacity determines the charging current
  • Suitable for totally discharged batteries
  • Constant battery operational readiness through integrated trickle charge
  • Ready for operation in just a few minutes
  • Charging below the gassing voltage
  • Optimal charging of damaged batteries
  • Individually programmed upon request

Electronic protection functions

  • Protection in the case of wrong or damaged batteries
  • Battery overcharge protection
  • Charger output protected against short circuits, reverse polarity and overvoltage

Displays

  • 3-digit 7-segment LED display
  • for voltage, current, charged capacity
  • 5 LEDs show operating states
  • for charging (pre-charging) recharging, trickle charging, piping error, battery fault

Operation

  • Mains grid switch
  • Adjustable rated capacity via rotary switch

Downloads

  •  Stecamat 202 Datasheet DE · pdf · 0,948 MB
  •  Stecamat 202 Datasheet EN · pdf · 0.948 MB
  •  Stecamat 202 product pic 3D · jpg, 300 DPI, high quality · 0.729 MB
  •  Stecamat 202 product pic 3D · jpg, 72 DPI, web quality · 0.144 MB

Technical data


Charging rated voltage
12 V
24 V
12 V
24 V
Charge current
40 A
20 A
40 A
30 A
End-of-charge voltage
14.4 V
28.8 V
14.4 V
28.8 V
Trickle charge voltage
13.8 V
27.6 V
13.8 V
27.6 V
Characteristic curve
UoIUoIU
Grid voltage
230 V AC ±10 %, optional 100 V AC … 240 V AC
230 V AC ±10 %, optional 100 V AC … 240 V AC
230 V AC ±10 %
230 V AC ±10 %
Frequency range
50 Hz / 60 Hz
50 Hz / 60 Hz
50 Hz
50 Hz
Mains electricity (230 V)
3.3 A
3.3 A
5.0 A
5.0 A
Mains electricity (110 V)
6.6 A
6.6 A
Discharge current during grid failure
1.3 mA
2.6 mA
2.6 mA
2.6 mA
Protection class
I
Casing
metal, coated
Degree of protection
IP 21
Ambient temperature
-20 °C … +40 °C
Cooling principle
convection
convection
regulated fan
regulated fan
Dimensions (X x Y x Z)
360 x 512 x 220 mm
Weight
20.0 kg
20.0 kg
22.0 kg
22.0 kg
