StecaGrid Vision

Display unit for StecaGrid 8000+ 3ph and 10000+ 3ph

Description

One photovoltaic system – one display

The philosophy behind the StecaGrid Vision display unit is to show the system operator the data for the entire system. In the standard display, the total power and yields of all of the connected StecaGrid inverters are shown together. That means that the operator does not have to go from one inverter to the next to read off and total up the values individually. Of course it is also possible to look at the data of individual inverters and compare them with each other.

Up to 20 inverters can be connected

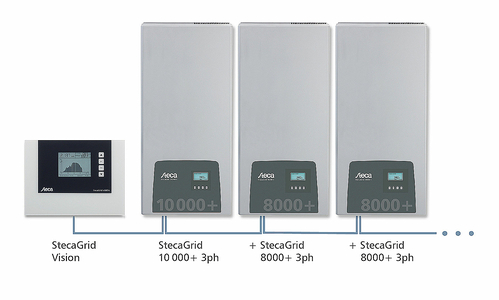

One to 20 StecaGrid inverters can be connected to the optional StecaGrid Vision display unit. The inverters are connected to each other and to the display unit using wires via Kontron Solar GmbH's own communication bus.

Convenient operation

The StecaGrid Vision boasts an impressive design. It is operated through four modern, capacitive buttons. Energy yields for the entire system and individual inverters are displayed as graphical curves, providing information about the course of the day at a glance. In addition, StecaGrid Vision includes a data logging function that also allows historical values to be queried. Error messages for the entire system and individual inverters are displayed in plain text.

StecaGrid Vision technische Zeichnung

Features

Displays

  • Multifunction graphical LC display with backlighting
  • for current output, energy yields, operating parameters, date, time, service information
  • Animated representation of yield

Operation

  • Multilingual menu navigation

Downloads

  •  StecaGrid Vision certificate CE · pdf · 0.969 MB
  •  StecaGrid Vision Datasheet DE · pdf · 0,352 MB
  •  StecaGrid Vision Datasheet EN · pdf · 0.338 MB
  •  StecaGrid Vision manual DE, EN, FR, IT · pdf · 3.660 MB
  •  StecaGrid Vision product pic 3D · jpg, 300 DPI, high quality · 1.137 MB
  •  StecaGrid Vision product pic 3D · jpg, 72 DPI, web quality · 0.251 MB
  •  StecaGrid Vision product pic drawing · jpg, 300 DPI, high quality · 0.074 MB
  •  StecaGrid Vision product pic drawing · jpg, 72 DPI, web quality · 0.037 MB
  •  StecaGrid Vision product pic connection · jpg, 300 DPI, high quality · 0.680 MB
  •  StecaGrid Vision product pic connection · jpg, 72 DPI, web quality · 0.190 MB
