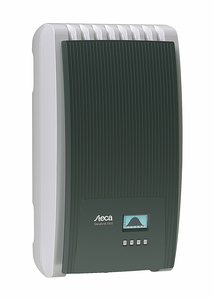

StecaGrid 2020

Highest efficiency with a long service life

Description

The very high efficiency level results in a peak efficiency of 97.5% and a European efficiency level of up to 96.7%, which means that less power loss has to be generated and dissipated to the environment. These are your yield advantages.

A new and unique cooling concept inside the inverters also guarantees an even distribution of heat and therefore a long service life for the units.

Product design and visualisation

The StecaGrid has a graphical LCD display that visualises energy yield values, current outputs and the operating parameters of the system. The innovative menu offers the possibility of an individual selection of the different measured values.

Thanks to a guided, pre-programmed menu, the seamless, final commissioning of the unit takes place.

Assembly

Weighing just 9 kg, the lightweight units can be mounted effortlessly and securely onto the wall. The wall bracket supplied and the practical recessed grips for right- and left-handed use make for easy and very comfortable installation. It is also not necessary to open the unit for installation. All connections as well as the DC isolator are accessible from the outside.

The inverters of the coolcept-120 series meet all of the requirements for use in countries with 110 V, 120 V and 127 V grids. The units are the ideal solution for markets such as South America, Africa and Asia.

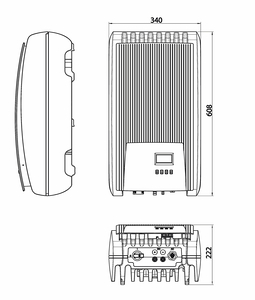

StecaGrid 2020 technische Zeichnung

Features

Product features

  • Highest efficiency
  • Simple installation
  • Integrated data logger
  • Firmware update possible
  • Low housing temperature at full load
  • Functionally perfect, environmentally-friendly plastic housing
  • Lowest possible own consumption
  • Integrated DC circuit breaker
  • Protective insulation according to protection class II
  • Very long service life
  • Up to 7-year free warranty after registration

Displays

  • Multifunction graphical LC display with backlighting
  • Animated representation of yield

Operation

  • Simple menu-driven operation
  • Multilingual menu navigation

Options

  • System monitoring with Solar-Log™ and WEB’log
  • Can be connected to a large-format display

Downloads

  •  StecaGrid 2020 productdatasheet DE · pdf · 0,815 MB
  •  StecaGrid 2020 productdatasheet EN · pdf · 0.756 MB
  •  StecaGrid 2020 product pic 3D · jpg, 300 DPI, high quality · 0.806 MB
  •  StecaGrid 2020 product pic 3D · jpg, 72 DPI, web quality · 0.257 MB
  •  StecaGrid 2020 product pic dr · jpg, 300 DPI, high quality · 1.132 MB
  •  StecaGrid 2020 product pic dr · jpg, 72 DPI, web quality · 0.524 MB
