StecaGrid 2010+

2,000 W to several 10,000 W

Description

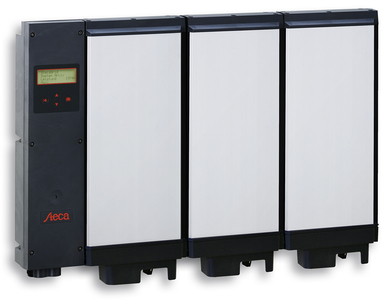

This product range consists of masters and slaves. Like the slaves, the master contains an inverter, but it also offers additional functions: a four-line display, a data logger for storing the yield values, country-specific grid monitoring on the AC output side and the possibility of using an optional interface card.

Flexible system planning

Each inverter (master or slave) in the product series has two inputs, each with its own MPP tracker. One module string can be connected to each input. Depending on the requirements, the inputs can also be connected in parallel.

The advantage of this kind of system is its lower susceptibility to adverse influences such as partial shading, malfunctions or the failure of a string. By using several decentralised master/slave combinations, the costs of DC cabling can be reduced and electrical losses can be minimised.

Galvanic isolation

The StecaGrid 2000+ and StecaGrid 2010+ inverters are equipped with a high-frequency transformer and are therefore galvanically isolated. This enables the unrestricted use of thin-film modules. Yet efficiency levels of up to 95% are still achieved.

The most diverse operating conditions

StecaGrid inverters offer constant performance over a wide ambient temperature range. This is supported by maintenance-free and natural convection via the generously dimensioned cooling fins. Since there is no fan, the inverter operation is virtually silent. Thanks to their high degree of protection, StecaGrid inverters are also suitable for outdoor use.

Integrated DC switch

To reduce the installation time, the StecaGrid 2010+ inverter includes an integrated DC switch. For safety reasons, the cable cover, which is located above the DC plug contact, can only be removed when the DC switch is switched off.

StecaGrid 2000+ and StecaGrid 2010+ (master and slaves) can be combined with each other.

Guarantee

The StecaGrid 2000+ and 2010+ have a 5-year guarantee. The guarantee period can optionally be extended to 10 years.

Features

Product features

  • Flexible and expandable
  • High efficiency
  • Low weight
  • Simple installation
  • Master-slave concept
  • Fanless and maintenance-free
  • Integrated data logger
  • Suitable for outdoor installation
  • Two Maximum Power Point Trackers (MPP tracker) per device
  • Integrated DC circuit breaker
  • Wall-mounting with steel wall bracket for very easy installation

Electronic protection functions

  • Integrated temperature monitoring with output derating

Displays

  • Text LC display
  • Multi-coloured LED shows operating states
  • for current output, energy yields, operating parameters, date, time, service information

Operation

  • Multilingual menu navigation
  • Four cursor buttons for menu selection

Downloads

  •  StecaGrid 2010+ productdatasheet DE · pdf · 0,599 MB
  •  StecaGrid 2010+ productdatasheet EN · pdf · 0.615 MB
  •  StecaGrid 2010+ manual DE, EN, FR · pdf · 20.845 MB
