Steca Tarom MPPT

Description

The Steca Tarom MPPT solar charge controller sets new standards in the field of large maximum power point trackers. Outstanding efficiency combined with unique protection features make it a universal peak charge controller.

Two inputs are available, which can be optionally connected in parallel or used separately. Each input has its own MPP tracker. This means that two charge controllers are available in one unit. Different module arrays can be flexibly combined in one charge controller.

With an input voltage range of up to 200 V, all types of solar modules can be used in different interconnections. This charge controller therefore combines maximum flexibility with maximum yield as well as professional battery care in an attractive design based on the very latest technology. A Steca Tarom MPPT 6000-M can communicate with up to 22 Steca Tarom MPPT 6000-S.

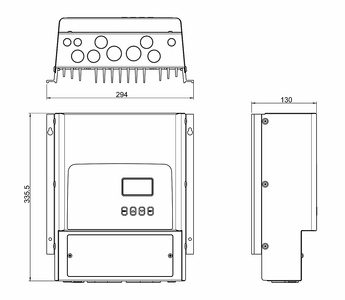

Steca Tarom MPPT technische Zeichnung

Features

Product features

  • Two independent maximum power point trackers (MPP trackers)
  • Two inputs (connected in parallel or used separately for two different module arrays)
  • Robust metal casing
  • Comprehensive data logging of energy values for up to 20 years
  • MicroSD slot for data logging of all minute values (6000-M only)
  • Voltage and current regulation
  • Temperature compensation
  • Monthly equalisation charge
  • Three configurable multifunctional contacts (6000-M only)
  • Adjustable cut-off voltages
  • Battery type: gel/liquid lead battery (for 6000-M also Li and NiCd batteries)
  • Integrated, automatic module switch
  • 36 V and 60 V batteries can be charged with special settings in expert menu level
  • Parallel connectable

Electronic protection functions

  • Overcharge protection
  • Reverse polarity protection of module and battery
  • Automatic electronic fuse
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • PE connection

Displays

  • Multifunction graphical LC display with backlighting

Interfaces

  • StecaLink Bus
  • Open Steca RS-232 interface
  • Battery emergency off signal connection (optional, 6000-M only)

Options

  • Connection for battery voltage sensor cable

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • Data cable Steca PA CAB3 Tarcom (6000-M only)
  • Current sensor Steca PA HS400
  • External temperature sensor Steca PA TS-S

Downloads

  •  Steca Tarom MPPT certificate CE · pdf · 0.828 MB
  •  Steca Tarom MPPT productdatasheet DE · pdf · 9,020 MB
  •  Steca Tarom MPPT productdatasheet EN · pdf · 8.861 MB
  •  Steca Tarom MPPT download Performance of MPPT charge controllers · pdf · 0.191 MB
  •  Steca Tarom MPPT manual DE · pdf · 3.457 MB
  •  Steca Tarom MPPT manual EN · pdf · 2.486 MB
  •  Steca Tarom MPPT manual ES · pdf · 3.035 MB
  •  Steca Tarom MPPT manual FR · pdf · 2.983 MB
  •  Steca Tarom MPPT product pic drawing · jpg, 300 DPI, high quality · 0.152 MB
  •  Steca Tarom MPPT product pic drawing · jpg, 72 DPI, web quality · 0.097 MB
  •  Steca Tarom MPPT Softwareupdate Softwareupdate · zip · 3.555 MB

Technical data

 MPPT 6000-S / MPPT 6000-M
Characterisation of the operating performance
System voltage
12 / 24 / 48 V
Nominal power
900 W / 1800 W / 3600 W
Max. DC-DC efficiency
99.4 % (Ubatt=48 V; Uin=70 V; P=0.65*Pnom)
European efficiency
96.6 % (Ubatt=24 V; Uin=30 V) 98.9 % (Ubatt=48 V; Uin=70 V)
European efficiency (weighted across all Ubatt and Uin)
96.4 %
Static MPP efficiency
99.9 % (DIN EN 50530)
Dynamic MPP efficiency
99.8 % (DIN EN 50530)
Weighted REW (Realistic Equally Weighted efficiency)
94.8 %
Own consumption
< 1 W
DC input side
Min. MPP voltage / input
17 V / 34 V / 68 V
Max. MPP voltage / input
180 V
Min. Open circuit voltage solar module / input (at minimum operating temperature)
20 V / 40 V / 80 V
Max. Open circuit voltage solar module / input (at minimum operating temperature)
200 V
Module current
2 x 30 A / 1 x 60 A
Battery side
Charge current
60 A
End-of-charge voltage
14.1 V / 28.2 V / 56.4 V
Boost charge voltage
14.4 V / 28.8 V / 57.6 V
Equalisation charge
15 V / 30 V / 60 V
Set battery type
liquid (adjustable via menu)
Operating conditions
Ambient temperature
-25 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
35 mm² - AWG 2
Degree of protection
IP 31
Dimensions (X x Y x Z)
294 x 335 x 130 mm
Weight
6300 g

  • Technical data at 25 °C / 77 °F
