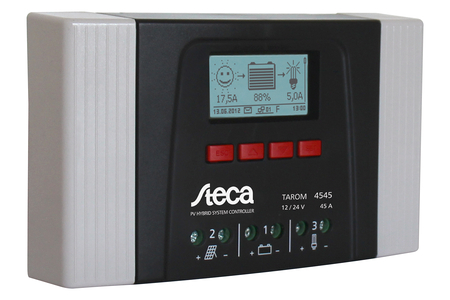

Steca Tarom

Description

The new edition of the Steca Tarom sets new standards in its power class. A graphic display informs users about all of the important system data. These data are stored by the integrated data logger.

Based on the significantly improved state of charge calculation, regulation of the system is optimal and the batteries are protected. The Steca Tarom charge controller is the best choice for larger systems at three voltage levels (12 V, 24 V, 48 V).

Two additional switching contacts can be freely configured as a timer, night light function, for starting generators or as a surplus manager.

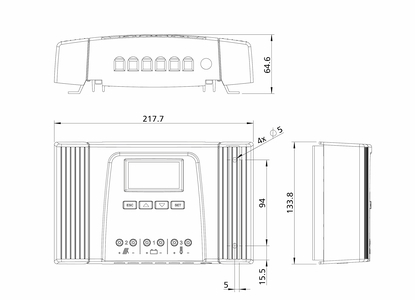

Steca Tarom 4545 technische Zeichnung

Features

Product features

  • Shunt topology with MOSFETs
  • MicroSD slot for data logging of all minute values
  • State of charge determination (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Real-time clock (date, time)
  • Innovative, comprehensive data logger with energy meter
  • MicroSD slot for data logging of all minute values
  • Evening, night light and daylight functions
  • Four freely programmable timers with week day function
  • Integrated self test
  • Monthly equalisation charge
  • Two configurable multifunctional contacts
  • Adjustable cut-off voltages

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Multifunction graphical LC display with backlighting

Operation

  • Simple menu-driven operation
  • Programming by buttons

Interfaces

  • StecaLink Bus
  • Open Steca UART interface

Options

  • Alarm contact

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • Data cable Steca PA CAB2 Tarcom
  • Current sensor Steca PA HS400
  • External temperature sensor Steca PA TS-S

Videos

Downloads

  •  Steca Tarom certificate CE · pdf · 0.844 MB
  •  Steca Tarom productdatasheet DE · pdf · 0,963 MB
  •  Steca Tarom productdatasheet EN · pdf · 0.963 MB
  •  Steca Tarom manual DE · pdf · 4.227 MB
  •  Steca Tarom manual EN · pdf · 4.156 MB
  •  Steca Tarom manual ES · pdf · 4.397 MB
  •  Steca Tarom manual FR · pdf · 4.316 MB
  •  Steca Tarom product pic drawing · jpg, 300 DPI, high quality · 0.475 MB
  •  Steca Tarom product pic drawing · jpg, 72 DPI, web quality · 0.253 MB

Technical data

 45454545-48
Characterisation of the operating performance
System voltage
12 V (24 V)
12 / 24 / 48 V
Own consumption
30 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 60 V
< 100 V
Module current
45 A
DC output side
Load current
45 A
Reconnection voltage (SOC / LVR)
> 50 % / 12.5 V (25 V)
> 50 % / 50 V
Deep discharge protection < 30 % (SOC / LVD)
< 30 % / 11.7 V (23.4 V)
< 30 % / 46.8 V
Battery side
End-of-charge voltage
14.1 V (28.2 V)
56.4 V
Boost charge voltage
14.4 V (28.8 V)
57.6 V
Equalisation charge
15 V (30 V)
60 V
Set battery type
liquid (adjustable via menu)
Operating conditions
Ambient temperature
-10 °C … +60 °C
Fitting and construction
Terminal (fine / single wire)
25 mm² / 35 mm² - AWG 4 / 2
Degree of protection
IP 31
Dimensions (X x Y x Z)
218 x 134 x 65 mm
Weight
800 g

  • Technical data at 25 °C / 77 °F
  • Inverters must not be connected to the load output.
