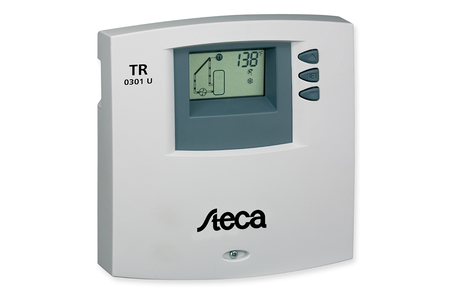

Steca TR 0301 U

3 inputs, 1 output

Description

The Steca TR 0301 U controller was developed specifically for the North American market as a variant of the basic Steca TR 0301 controller. Special approval (ETL mark) via a testing laboratory recognised in the United States as an NRTL (Nationally Recognized Testing Laboratory) means that the relevant safety standards and minimum requirements of the North American market have been met.

The special feature of the controller types from the Steca TR 0301 series is the graphically animated display, which are used to completely visualise the operating status and solar circuit of a solar system.

The clear display guarantees simple operation through the consistent use of pictograms. The design of the controller was created together with an internationally renowned design centre. The controller monitors and controls solar thermal systems with one collector array and one storage tank. The controller also takes over important system monitoring and safety functions, ensuring the continuous and safe operation of the entire system. The numerous additional functions of the Steca TR 0301 include the maximum storage tank temperature, a tube collector function, a frost protection function, a holiday or re-cooling function and the option of selecting the temperature display in degrees Celsius (°C) or Fahrenheit (°F). The operational safety of the system is supported by sophisticated fault diagnostics. Here, the multicoloured LCD backlighting ensures that any faults that have occurred can be found quickly and reliably, helping to rectify quickly any faults.

The Steca TR 0301 U controller is supplied with a pre-assembled US network cable and a pre-installed plug-in pump output.

Steca TR0301 U technische Zeichnung

Features

Product features

  • Compact, multipart designer casing
  • Maximum storage tank temperature
  • High level of operational safety through fault diagnosis
  • Temperature display °C / °F
  • Collector overtemperature disconnection
  • Spring clamp terminals allow rapid and easy installation

Displays

  • Graphical LC display with backlighting
  • Animated representation of the systems and operating states

Operation

  • Non-verbal menu navigation
  • Side switch for manual, auto, off

Functions

  • Holiday (storage tank recooling)
  • Interval / tube collector
  • Anti-freeze
  • Display storage tank top

Downloads

  •  Steca TR 0301 U productdatasheet DE · pdf · 0,957 MB
  •  Steca TR 0301 U productdatasheet EN · pdf · 0.957 MB
  •  Steca TR 0301 U manual EN · pdf · 2.190 MB
  •  Steca TR 0301 U product pic drawing · jpg, 300 DPI, high quality · 0.719 MB
  •  Steca TR 0301 U product pic drawing · jpg, 72 DPI, web quality · 0.343 MB

Technical data

 TR 0301 U
System voltage
120 V AC, 60 Hz
System voltage optional
240 V AC, 60 Hz
Standby
1.07 W [0.001 HP]
Temperature control class
I
Energy efficiency
1 %
Number of inputs
3
Inputs
3 x temperature (Pt1000)
Number of outputs
1
Output
1 x switch output relay (R1), max. 400 W / 0.5 HP (120 V AC) or 800 W / 1 HP (240 V AC)
Line cord
75 inch, 3 x 18 AWG at 221 °F
Turn-on temperature difference
16 F
Turn-off temperature difference
8 F
Ambient temperature
0 °C [+32 °F] … +45 °C [+113 °F]
Degree of protection
IP 20 / DIN 40050
Dimensions (X x Y x Z)
160 x 157 x 47 mm [6.30 x 6.18 x 1.85 inch]
Weight
350 g [12.35 oz]
Temperature sensors 2 x Pt1000
1.5 m [59 inch] silicone cable without bushing (measuring range up to +180 °C [+356 °F])
