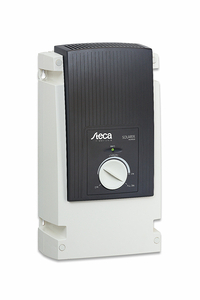

Steca Solarix PI

500-12, 550-24, 1100-24, 1500-48

Description

The latest generation of Steca Solarix PI sine wave inverters is characterised by its robustness. The existing protective functions have been redesigned to make them more customer-friendly and more resistant. The new generation of the Steca Solarix PI has different technical features than the predecessor models and may not be able to replace them directly.

The development of the Steca Solarix PI sine wave inverter involved a number of innovations. Of particular note here are the parallel connectivity of all Steca Solarix PI models, the innovative operating concept using a single rotary switch and the electronic fuse. In addition, many years of experience for special use in photovoltaic systems have also been incorporated. This is expressed, among other things, in the stable supply of a wide range of devices and the low self-consumption level.

The power of the new Steca Solarix PI generation can only be expanded with the new Steca PA Link1 parallel switch box. It is not possible to combine new and old Steca Solarix PI inverters via a parallel switch box.

Steca Solarix PI technische Zeichnung

Features

Product features

  • True sine wave voltage
  • Excellent overload capabilities
  • Optimal battery protection
  • Automatic load detection
  • Parallel connectable
  • Best reliability
  • Protective insulation according to protection class II
  • Control by digital signal processor (DSP)

Electronic protection functions

  • Deep discharge protection
  • Battery overvoltage shutdown
  • Short circuit protection
  • Reverse polarity protection
  • Overtemperature and overload protection
  • Automatic electronic fuse

Displays

  • Multi-coloured LED shows operating states

Operation

  • Main switch
  • Adjustable load detection

Options

  • Type with 230 V / 60 Hz
  • Type with 115 V / 60 Hz

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

  •  Steca Solarix PI certificate CE · pdf · 0.816 MB
  •  Steca Solarix PI Datasheet DE · pdf · 1,008 MB
  •  Steca Solarix PI Datasheet EN · pdf · 1.008 MB
  •  Steca Solarix PI manual DE, EN, ES, FR, IT · pdf · 1.590 MB
  •  Steca Solarix PI product pic 3D · jpg, 300 DPI, high quality · 0.865 MB
  •  Steca Solarix PI product pic 3D · jpg, 72 DPI, web quality · 0.247 MB
  •  Steca Solarix PI product pic · jpg, 300 DPI, high quality · 1.004 MB
  •  Steca Solarix PI product pic · jpg, 72 DPI, web quality · 0.296 MB
  •  Steca Solarix PI product pic drawing · jpg, 300 DPI, high quality · 0.145 MB
  •  Steca Solarix PI product pic drawing · jpg, 72 DPI, web quality · 0.145 MB

Technical data

 500-12550-241100-241500-48
Inverter type
PI 550-24
PI 1100-24
PI 1500-48
Number of inverters / Steca PA Link1
1 / 0
1 / 0
1 / 0
Characterisation of the operating performance
System voltage
12 V
24 V
24 V
48 V
Continuous power
450 VA
450 VA
900 VA
900 VA
Power 30 min.
500 VA
550 VA
1100 VA
1500 VA
Power 5 sec.
500 VA
1000 VA
1400 VA
2800 VA
Max. efficiency
93 %
93 %
94 %
94 %
Own consumption standby
0.5 W
0.5 W
0.7 W
0.7 W
Own consumption ON
6.0 W
6.0 W
10.0 W
10.0 W
DC input side
Battery voltage
10.5 V … 16 V
21 V … 32 V
21 V … 32 V
42 V … 64 V
Reconnection voltage (LVR)
12.5 V
25.0 V
25.0 V
50.0 V
Deep discharge protection (LVD)
10.5 V
21.0 V
21.0 V
42.0 V
AC output side
Output voltage
230 V AC ±10 %
Output frequency
50 Hz
Load detection (standby)
adjustable: 2 W … 50 W
Safety
Protection class
II (double insulated)
Electrical protection
reverse polarity battery, reverse polarity AC, over voltage, over current, over temperature
Operating conditions
Ambient temperature
-20 °C … +50 °C
Fitting and construction
Cable length battery / AC
1.5 m / 1.5 m
Cable cross-section battery / AC
16 mm² / 1.5 mm²
Degree of protection
IP 20
Dimensions (X x Y x Z)
212 x 395 x 130 mm
Weight
6,6 kg
6,6 kg
9 kg
9 kg

  • Dimensions and weight per inverter
