Steca Solarix

Description

The Steca Solarix 2525 and 4040 solar charge controllers are a further development of the globally popular Steca PR controller family. Thanks to the increased module and load current, the controllers are now also suitable for even larger systems. The units also have an integrated USB charging socket that can be used to charge smartphones and tablets.
The latest charging technologies combined with a state of charge determination result in optimal battery care and control. A large display uses symbols to inform users about all of the operating states. The state of charge is displayed visually as a level meter. Data such as voltage, current and state of charge can also be shown digitally as a number on the display. The controller also has an energy counter that users can reset themselves.

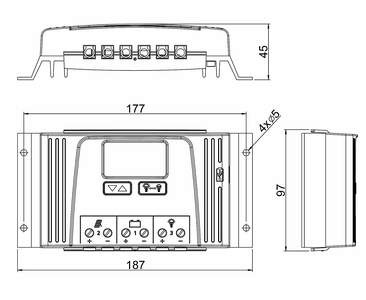

Steca Solarix technische Zeichnung

Features

Product features

  • Shunt topology with MOSFETs
  • State of charge determination with Steca AtonIC (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Integrated data logger (energy meter)
  • Evening, night light and daylight functions
  • Integrated self test
  • Monthly equalisation charge
  • USB charge socket for smartphones and tablets

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Graphical LC display
  • for operating parameters, fault messages, self test

Operation

  • Simple menu-driven operation
  • Programming by buttons
  • Manual load switch

Options

  • Alarm contact

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in EU
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • External temperature sensor Steca PA TS10

Downloads

  •  Steca Solarix certificate CE · pdf · 0.779 MB
  •  Steca Solarix productdatasheet DE · pdf · 0,991 MB
  •  Steca Solarix productdatasheet EN · pdf · 0.991 MB
  •  Steca Solarix manual DE · pdf · 0.706 MB
  •  Steca Solarix manual EN · pdf · 0.701 MB
  •  Steca Solarix manual ES · pdf · 0.713 MB
  •  Steca Solarix manual FR · pdf · 0.713 MB
  •  Steca Solarix manual IT · pdf · 0.694 MB
  •  Steca Solarix manual PT · pdf · 0.697 MB
  •  Steca Solarix product pic drawing · jpg, 300 DPI, high quality · 0.263 MB
  •  Steca Solarix product pic drawing · jpg, 72 DPI, web quality · 0.099 MB

Technical data

 25254040
Characterisation of the operating performance
System voltage
12 V (24 V)
Own consumption
18,5 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 47 V
Module current
25 A
40 A
DC output side
Load current
25 A
40 A
USB charge socket
5.2 V / 1.5 A
Reconnection voltage (SOC / LVR)
> 50 % / 12.6 V (25.2 V)
Deep discharge protection < 30 % (SOC / LVD)
< 30 % / 11.1 V (22.2 V)
Battery side
End-of-charge voltage
13.9 V (27.8 V)
Boost charge voltage
14.4 V (28.8 V)
Equalisation charge
14.7 V (29.4 V)
Set battery type
liquid (adjustable via menu)
Operating conditions
Ambient temperature
-10 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
16 mm² / 25 mm² - AWG 6 / 4
Degree of protection
IP 30
Dimensions (X x Y x Z)
187 x 97 x 45 mm
Weight
350 g

  • Technical data at 25 °C / 77 °F
  • Inverters must not be connected to the load output.
