Steca PR 2020 IP

Description

The functionality of the Steca PR 2020 IP is based on the Steca PR solar charge controller series. It is equipped with a large display that visually shows the current state of charge (SOC) as a percentage and as a level meter. The core of the charge controller is the state of charge determination. The self-learning state of charge algorithm results in optimal battery care and control. The Steca PR 2020 IP is specially designed for operation in difficult environments with high levels of salt, moisture and dust.

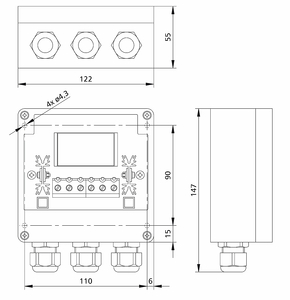

Steca PR 2020IP technische Zeichnung

Features

Product features

  • Shunt topology with MOSFETs
  • State of charge determination with Steca AtonIC (SOC)
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Load disconnection depending on SOC
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Integrated data logger (energy meter)
  • Evening, night light and daylight functions
  • Integrated self test
  • Monthly equalisation charge

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of module, load and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Overtemperature and overload protection
  • Load disconnection on battery overvoltage

Displays

  • Graphical LC display
  • for operating parameters, fault messages, self test

Operation

  • Simple menu-driven operation
  • Programming by buttons
  • Manual load switch

Options

  • Alarm contact (special version, needs to be mentioned on the purchase order)

Certificates

  • Fit for use in tropical areas (DIN IEC 68 part 2-30)
  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Accessories

  • External temperature sensor Steca PA TS20IP10

Downloads

  •  Steca PR 2020 IP certificate CE · pdf · 0.434 MB
  •  Steca PR 2020 IP Datasheet DE · pdf · 0,999 MB
  •  Steca PR 2020 IP Datasheet EN · pdf · 0.999 MB
  •  Steca PR 2020 IP manual DE · pdf · 0.700 MB
  •  Steca PR 2020 IP manual EN · pdf · 0.685 MB
  •  Steca PR 2020 IP product pic drawing · jpg, 300 DPI, high quality · 0.361 MB
  •  Steca PR 2020 IP product pic drawing · jpg, 72 DPI, web quality · 0.186 MB

Technical data

 2020 IP
Characterisation of the operating performance
System voltage
12 V (24 V)
Own consumption
12 mA
DC input side
Open circuit voltage solar module (at minimum operating temperature)
< 47 V
Module current
20 A
DC output side
Load current
20 A
Reconnection voltage (SOC / LVR)
> 50 % / 12.6 V (25.2 V)
Deep discharge protection < 30 % (SOC / LVD)
< 30 % / 11.1 V (22.2 V)
Battery side
End-of-charge voltage
13.9 V (27.8 V)
Boost charge voltage
14.4 V (28.8 V)
Equalisation charge
14.7 V (29.4 V)
Set battery type
liquid (adjustable via menu)
Operating conditions
Ambient temperature
-10 °C … +50 °C
Fitting and construction
Terminal (fine / single wire)
16 mm² / 25 mm² - AWG 6 / 4
Degree of protection
IP 65
Dimensions (X x Y x Z)
122 x 147 x 55 mm
Weight
410 g

  • Technical data at 25 °C / 77 °F
  • Inverters must not be connected to the load output.
