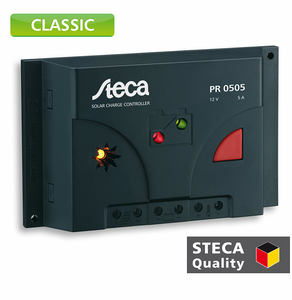

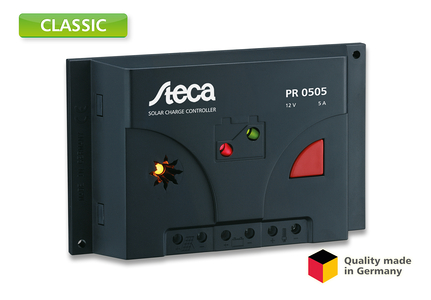

Steca PR 03-05
PR 0303, PR 0505
Description
The Steca PR 0303 and Steca PR 0505 solar charge controllers are ideal for use in small solar home systems.
This means that lamps, radios or a small television can be operated without any issue. All consumers can be switched off using the manual load switch on the controller. Due to its extremely low self-consumption, the Steca PR is particularly suitable for professional applications in telecommunications and traffic engineering. As it is a serial controller, it is highly flexible with regard to the type of power source connected. Thanks to its electronic fuse, the charge controller is absolutely maintenance-free and robust.
Features
Product features
- Serial topology with MOSFETs
- Voltage regulation
- PWM control
- Multistage charging technology
- Current compensated load disconnection
- Automatic load reconnection
- Temperature compensation
- Negative earthing of one or positive earthing of several terminals possible
Electronic protection functions
- Overcharge protection
- Deep discharge protection
- Reverse polarity protection of module, load and battery
- Automatic electronic fuse
- Short circuit protection of load and module
- Overvoltage protection at module input
- Open circuit protection without battery
- Reverse current protection at night
- Overtemperature and overload protection
- Load disconnection on battery overvoltage
Displays
- Multi-coloured LED
- 3 multi-coloured LEDs show operating states
- for operation, state of charge, fault messages
Operation
- Manual load switch
Certificates
- Compliant with European Standards (CE)
- RoHS compliant
- Made in Germany
- Developed in Germany
- Manufactured according to ISO 9001 and ISO 14001
Downloads

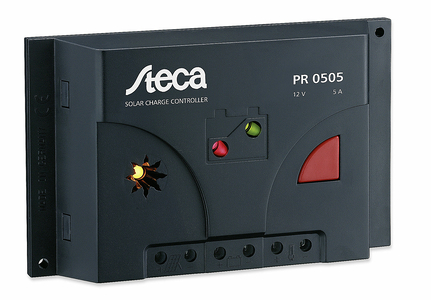

- Steca PR 03-05 product pic 3D · jpg, 300 DPI, high quality · 1.829 MB
- Steca PR 03-05 product pic 3D · jpg, 72 DPI, web quality · 0.582 MB
- Steca PR 03-05 product pic · jpg, 300 DPI, high quality · 1.811 MB
- Steca PR 03-05 product pic · jpg, 72 DPI, web quality · 0.561 MB
- Steca PR 03-05 product pic drawing · jpg, 300 DPI, high quality · 0.265 MB
- Steca PR 03-05 product pic drawing · jpg, 72 DPI, web quality · 0.138 MB
Technical data
| PR 0303 | PR 0505 | |
|---|---|---|
| Characterisation of the operating performance | ||
| System voltage | 12 V | |
| Own consumption | 3 mA | |
| DC input side | ||
| Open circuit voltage solar module (at minimum operating temperature) | < 47 V | |
| Module current | 3 A | 5 A |
| DC output side | ||
| Load current | 3 A | 5 A |
| Reconnection voltage (LVR) | 12.5 V | |
| Deep discharge protection (LVD) | 11 V … 11.5 V | |
| Battery side | ||
| End-of-charge voltage | 13.7 V | |
| Boost charge voltage | 14.4 V | |
| Set battery type | gel | |
| Operating conditions | ||
| Ambient temperature | -25 °C … +50 °C | |
| Fitting and construction | ||
| Terminal (fine / single wire) | 6 mm² / 10 mm² - AWG 10 / 8 | |
| Degree of protection | IP 32 | |

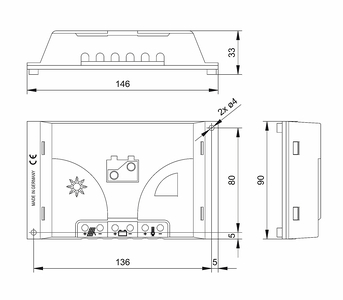

| Dimensions (X x Y x Z) | 146 x 90 x 33 mm | |
| Weight | 160 g | |
- Inverters must not be connected to the load output.
