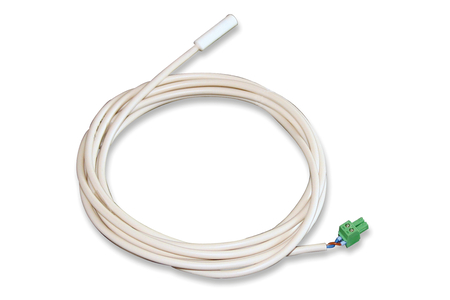

Steca PA TS10 / PA TS20IP10 / PA TS-S

External temperature sensors for monitoring the battery temperature


The external temperature sensors Steca PA TS10, Steca PA TS20IP10 and Steca PA TS-S are used to monitor the battery temperature. All Steca solar charge controllers are equipped with an integrated temperature sensor and are therefore always able to adapt the charging strategy to the current temperature conditions. The external temperature sensors are only needed if the battery has to be placed in a different room than the solar charge controller. Steca PA TS10 is supplied with a cable including a plug for connection to the solar charge controller and a ring eyelet for the connection to the battery screw. The PA TS20IP10 is supplied accordingly with plugs and ring eyelet so that a freely selectable cable can be used. The external temperature sensors are suitable for the Steca PR 10-30, Steca Solarix, Steca Solarix MPPT, Steca Power Tarom, Steca PR 2020 IP, Steca Tarom 4545/4545-48 and Steca Tarom MPPT 6000-S/6000-M solar charge controllers.


Product features

  • Passive sensor
  • Low weight
  • Very long service life
  • Simple installation
  • Maintenance-free
  • No own consumption
  • Best reliability


  • Compliant with European Standards (CE)
  • RoHS compliant


  •  Steca PA TS10 / PA TS20IP10 / PA TS-S productdatasheet DE · pdf · 0,886 MB
  •  Steca PA TS10 / PA TS20IP10 / PA TS-S productdatasheet EN · pdf · 0.886 MB

Technical data

Characterisation of the operating performance
Measurement accuracy
±5 %
Operating conditions
Ambient temperature
-25 °C … +125 °C
Fitting and construction
Battery connection
ring eyelet Ø 10 mm
ring eyelet Ø 10 mm
Charge controller connection
twice a2-pole luster terminal
2-pole cable, optional connector
3.75 m
without cable
1.8 m
Degree of protection
IP 22
95 g
30 g
40 g
