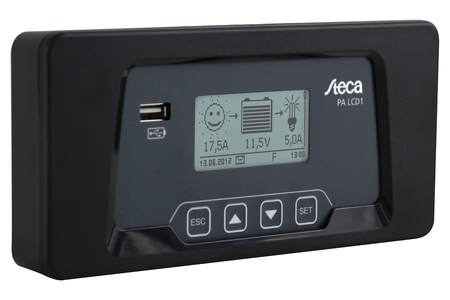

Steca PA LCD1

Remote display for the Steca Solarix solar charge controller

Description

The Steca PA LCD1 is a graphic remote display for the Steca Solarix 2020-x2 solar charge controller. All system information is clearly displayed, the graphically designed energy flow can be understood intuitively. The remote display has a full-fledged data logger with graphic display that allows complete control of the entire system. Virtually all of the charge controller parameters can be set and changed with the help of the remote display. This allows the distribution of the charging power between the two batteries to also be adjusted. All automatic time and battery voltage functions are fully programmable for the load output. A USB charging socket for smartphones and tablets is also available.

Features

Product features

  • Can only be used in conjunction with the Steca Solarix 2020-x2
  • Simple installation
  • Maintenance-free
  • Fully-fledged integrated data logger
  • Best reliability
  • Four freely programmable timers with week day function
  • Evening, night light and daylight functions
  • Generator manager
  • Surplus manager
  • Automatic shutdown when not in use for more than week
  • USB charge socket for smartphones and tablets

Displays

  • Multifunction graphical LC display with backlighting
  • for operating parameters, voltage, current, fault messages

Operation

  • Simple menu-driven operation
  • Programming by four buttons

Interfaces

  • StecaLink Bus

Certificates

  • Compliant with European Standards (CE)
  • RoHS compliant
  • Made in Germany
  • Manufactured according to ISO 9001 and ISO 14001

Downloads

  •  Steca PA LCD1 certificate CE · pdf · 0.785 MB
  •  Steca PA LCD1 productdatasheet DE · pdf · 0,900 MB
  •  Steca PA LCD1 productdatasheet EN · pdf · 0.900 MB
  •  Steca PA LCD1 manual DE · pdf · 2.608 MB
  •  Steca PA LCD1 manual EN · pdf · 2.827 MB
  •  Steca PA LCD1 manual ES · pdf · 2.813 MB
  •  Steca PA LCD1 manual FR · pdf · 2.799 MB
  •  Steca PA LCD1 manual IT · pdf · 2.812 MB
  •  Steca PA LCD1 manual NL · pdf · 2.812 MB
  •  Steca PA LCD1 manual PT · pdf · 2.814 MB

Technical data

 PA LCD1
Characterisation of the operating performance
System voltage
10 V … 60 V
Own consumption
30 mA
Adjustable parameters
end of charge voltages (float / boost / equal), distribution of the charge power between main and auxiliary battery, type of battery, LVD / LVR load output
Safety
Alarm output
for all recorded parameters programmable
Operating conditions
Ambient temperature
-10 °C … +60 °C
Relative humidity
0 % … 95 %, non-condensating
Fitting and construction
Interfaces
1x RJ45, StecaLink Bus
USB charge socket
5 V / 500 mA … 800 mA
Degree of protection
IP 21
Mounting
surface-mounted / flush-mounted
Dimensions (X x Y x Z)
90 x 180 x 30 mm
Weight
400 g
