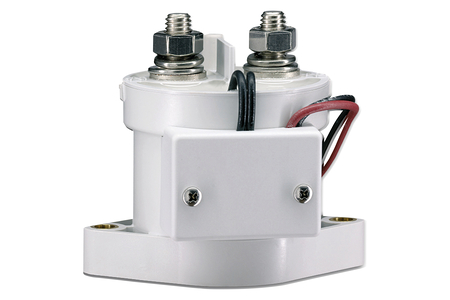

Steca PA EV200 DC

DC relay increases the switching capacity of Steca charge controllers

Description

The Steca PA EV200 relay increases the switching capacity of the Steca charge controller to 200 A (up to 10 kW). The relay is connected to the load output of a charge controller or, if applicable, to its AUX contacts. For example, it interrupts the battery voltage to a back-up generator when the final charge voltage is reached. The relay is hermetically sealed and operates safely under harsh environmental conditions such as dust, salt or humidity.

Downloads

  •  Steca PA EV200 DC productdatasheet DE · pdf · 0,887 MB
  •  Steca PA EV200 DC productdatasheet EN · pdf · 0.887 MB

Technical data

 type Atype B
Characterisation of the operating performance
System voltage
12 V (24 V)
36 V (48 V)
Coil voltage
9 V … 36 V
32 V … 95 V
Rated current
200 A
Life span
1 million switching cycles
Contact resistance
0.1 mΩ … 0.3 mΩ
Operating conditions
Ambient temperature
-40 °C … +85 °C
Fitting and construction
Dimensions (X x Y x Z)
63 x 80 x 72 mm
Weight
430 g
