FernLite
The monitoring solution for off-grid PLI inverters
Description
Connect
FernLite is easy to install. Simply scan the QR code on your box and follow the step-by-step instructions to connect to your Steca inverter. No external power supply required.
Analyse
Track performance, system health and usage metrics across the portfolio.
Respond
Change system configurations remotely to avoid on-site visits and receive customised e-mail notifications if something has gone wrong.
Features
Product features
- Intuitive status overview of all systems

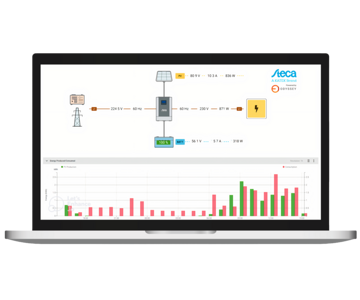

- Standardized dashboard with layout diagram, Key performance indicators and charts to immediately understand how a system is performing
- Change the inverter configuration remotely
- Keep history record of all configuration changes made
- Set-up notifications via e-mail or slack when an alarm is triggered or thresholds are reached
- Export data via to csv/excel
- API integration available for third-party software
- Create unlimited number of users and manage their rights
- Manage sub-companies to logically organize systems and users
- in English, Spanish and French available
- Advanced monitoring and control features also available on request
Videos
Downloads
Technical data

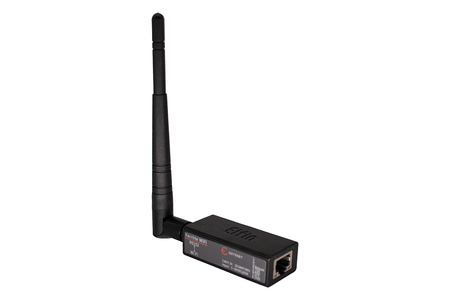

| FernLite WiFi Gateway | |
|---|---|
| technicaldata_technicaldata | |
| betriebssystem | Linux |
| prozessormodell | HF-LPT230 |
| nennspannung | 5-36 VDC |
| betriebsleistung | 1.8 W (max) |
| Operating temperatur | -40 °C bis +85 °C |
| lagertemperaturbereich | -45 °C bis +105 °C / 5 bis 95 % RH |
| Dimensions | 27 mm / 17.8 mm / 68.5 mm |
| produktgewicht | 35 g (mit Antenne) |
| montage | Wandmontage |
| kommunikationsschnittstelle | WiFi, RS232, RS485 |
| wifisicherheit | WEP64 / WEP128 / TKIP / AES |
| genauigkeit | Die gemessene Genauigkeit hängt von den Sensoren im Feld ab. |
| frequenz | Maximal 1 Minute |
