MDC | MDCI
Description
DC-DC voltage converters are used when the DC output voltage of the PV system does not meet the needs of the consumers.
As a voltage level of 12 V is required for most low-voltage devices such as lamps, multimedia devices, radios or mobile phones, the different types of voltage converters provide a stable 12 V supply. If, for example, a 12 V energy-saving lamp is operated in a 24 V or 48 V system, a suitable DC-DC voltage converter must be inserted between the load output of the charge controller and the 12 V energy-saving lamp.

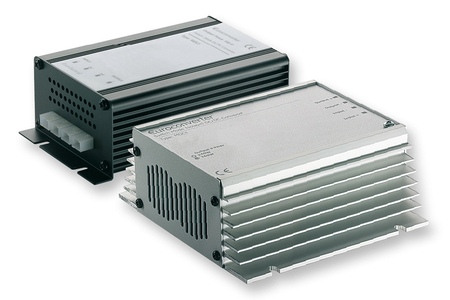

The MDC and MDCI voltage converters are designed for use in photovoltaic systems. The types with an output voltage of 13.8 V can also be used as a battery charger of a 12 V battery in a 24 V system.
For safety reasons, the MDCI series is galvanically isolated to protect the consumers. Both the MDCI and MDC series are protected against high voltage peaks at the input, preventing any damaging surges at the input of the loads.
Features
Product features
- High efficiency
- Automatic detection of voltage
- Wide input voltage range
- Best reliability
- Parallel switching of up to two MDCI
Electronic protection functions
- Overtemperature and overload protection
- Reverse polarity protection
- Short circuit protection
Certificates
- Compliant with European Standards (CE)
- RoHS compliant
- Made in EU
Downloads
Technical data
| MDC 2412-5 | MDC 2412-8 | MDC 2412-12 | MDC 2412-20 | MDC 2412-30 | MDC 1224-7 | MDCI 100 | MDCI 200 | MDCI 360 | |
|---|---|---|---|---|---|---|---|---|---|
| Characterisation of the operating performance | |||||||||
| Nominal power | 65 W | 105 W | 160 W | 275 W | 415 W | 170 W | 100 W | 200 W | 360 W |
| Max. efficiency | 90 % | 90 % | 90 % | 90 % | 90 % | 90 % | 85 % | 85 % | 85 % |
| DC input side | |||||||||
| Input voltage | 18 V … 35 V | 18 V … 35 V | 20 V … 35 V | 20 V … 35 V | 20 V … 35 V | 9 V … 18 V | 9 V … 18 V / 20 V … 35 V / 30 V … 60 V / 60 V … 120 V | 9 V … 18 V / 20 V … 35 V / 30 V … 60 V / 60 V … 120 V | 9 V … 18 V / 20 V … 35 V / 30 V … 60 V / 60 V … 120 V |
| DC output side | |||||||||
| Output voltage | 13.2 V | 13.2 V | 13.2 V | 13.8 V | 13.8 V | 24 V | 12.5 V / 24.5 V | 12.5 V / 24.5 V | 12.5 V / 24.5 V |
| Output current | 5.5 A | 8 A | 12 A | 20 A | 30 A | 7 A | 8 A / 4A | 16.5 A / 8 A | 30 A / 15 A |
| Operating conditions | |||||||||
| Ambient temperature | -20 °C … +40 °C | -20 °C … +40 °C | -20 °C … +40 °C | -20 °C … +40 °C | -20 °C … +40 °C | -20 °C … +40 °C | -20 °C … +45 °C | -20 °C … +45 °C | -20 °C … +45 °C |
| Fitting and construction | |||||||||
| Galvanic isolation | no | no | no | no | no | no | yes | yes | yes |

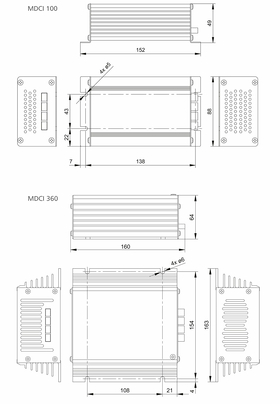

| Dimensions (X x Y x Z) | 87 x 55 x 49 mm | 87 x 85 x 49 mm | 87 x 85 x 49 mm | 87 x 115 x 49 mm | 87 x 125 x 49 mm | 87 x 115 x 49 mm | 88 x 152 x 49 mm | 88 x 182 x 49 mm | 163 x 160 x 64 mm |
| Weight | 170 g | 250 g | 260 g | 480 g | 600 g | 300 g | 500 g | 600 g | 1400 g |
| Cooling principle | convection | convection | convection | convection | fan | convection | convection | fan | fan |
